The Mud Liquid Square Filter Plate Chamber Press Filtration is a specialized system for filtering mud liquid. It incorporates square filter plates and a chamber press for efficient separation.Square plate filter press has two kinds, one is chamber filter press (One filter), the other is membrane filter press (second filter is operated by air or water).
Lead Time:
according to the machine model and quantProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sightColor:
customizedMud Liquid Square Filter Plate Chamber Press Filtration
The Mud Liquid Square Filter Plate Chamber Press Filtration offers a reliable and effective solution for treating mud liquid. The square filter plates provide a larger filtration area, enhancing the throughput and filtration efficiency.
The chamber press design ensures uniform pressure application, resulting in consistent and high-quality filtrate. This filtration system is engineered to handle the challenging properties of mud liquid, reducing the moisture content and separating the solids effectively.
It is widely applicable in industries such as construction, mining, and environmental protection, where the efficient treatment of mud liquid is crucial for operational success and environmental compliance.
Filter Press Characteristic：
1. The main parts of filter press is made of high intensity welded steel, accessories processed by PLC with high precision.
2. The filter plates are made of PP, long life span Corrosion resistant, non-toxic and tasteless
3. Hydraulic Pressing, adopting the contact meter to maintain the pressure automatically.
4. The highest working pressure could be 1.5Mpa.
5. The filter press could be of automatic plate opening device and water collector.
Filter Press application：
Food, Textile, Chemical, Dyeing, Leather, Mining (Aluminium, Bauxite， Copper, Iron) and Electroplate.
Filter Press Technical Parameters：
Hydraulic Chamber Filter Press With Square Plates
Model
| Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
NX-630 | 16 | 630*630 | 50 | 1.5 | 26 | 200 | ≤1.0 | 2790*1020*1200 | 1320 |
20 | 32 | 250 | 3096*1020*1200 | 1400 | |||||
25 | 40 | 313 | 3504*1020*1200 | 1540 | |||||
NX-800 | 50 | 800*800 | 60 | 1.5 | 50 | 750 | ≤1.0 | 4794*1246*1325 | 3140 |
60 | 60 | 900 | 5404*1246*1325 | 3470 | |||||
70 | 70 | 1050 | 6014*1246*1325 | 3950 | |||||
NX-1000 | 50 | 1000*1000 | 60 | 3.0 | 30 | 750 | ≤1.0 | 3984*1500*1555 | 4590 |
60 | 36 | 900 | 4350*1500*1555 | 4800 | |||||
70 | 42 | 1050 | 4716*1500*1555 | 5160 | |||||
80 | 48 | 1200 | 5082*1500*1555 | 5440 |
Plates could be added or reduced according to customer's requirements.

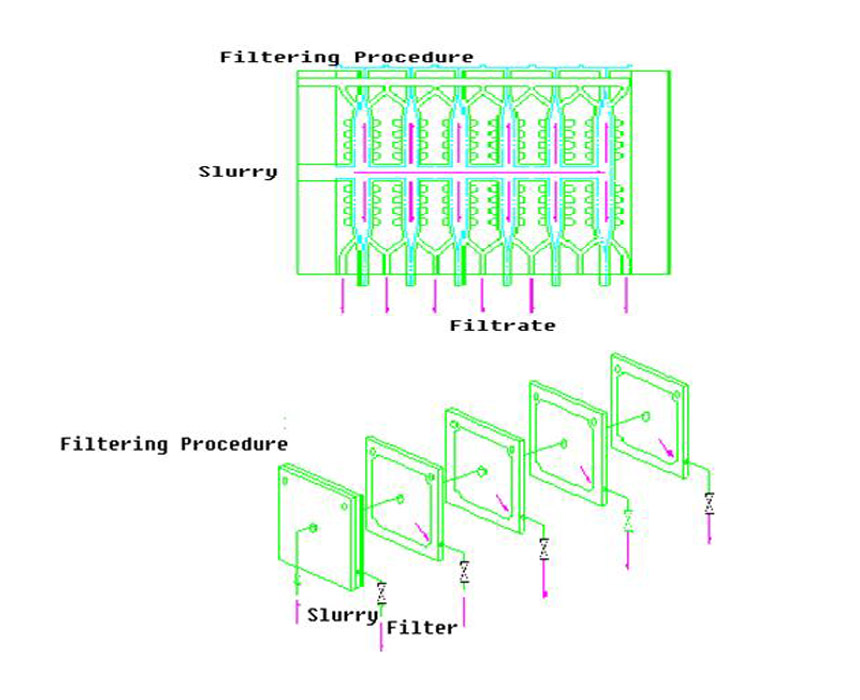

How Filter Press Work:
1The slurry is sent by slurry pump to chambers which formed by filter plates. Then filtrating media (filter cloth) separates solid and liquid. After the filtration finished, stopping the feeding, releasing the slurry pressure, press the returning button, shifting the plates automatically.
FAQ
1.Q: Can you provide us the detailed drawing?
Yes, we can provide you the drawing after have made the prepayment.
2.Q: Are you a manufacturer or a trader?
We're a professional and experienced manufacturer located in Fujian province.
3.Q: Can you accept OEM?
Yes
4Q: How about the delivery time?
Normally 10-30 working days after prepayment, and we promise we will make the delivery as soon as we can.
