Square Filter Plate Sewage Sludge Filtration Press Machine

The filter press working pressure could be 0.6-1.5Mpa, according to your requirements.

  • Lead Time:

    according to the machine model and quant
  • Product Origin:

    china
  • Shipping Port:

    xiamen
  • Payment:

    T/T, LC at sight
  • Color:

    customized
  • MOQ:

    1
  • Product Details

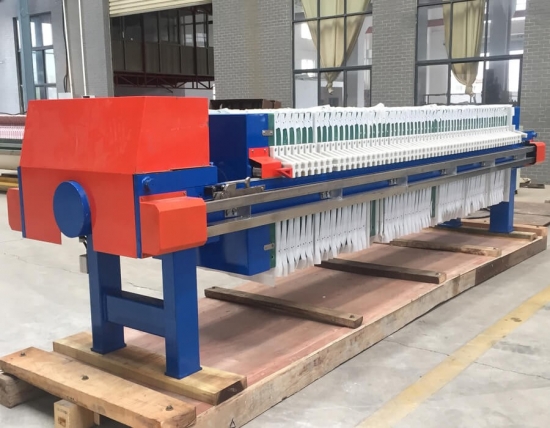

Square Filter Plate Sewage Sludge Filtration Press Machine


Filter Press Characteristic:

1. The main parts of filter press is made of high intensity welded steel, accessories processed by PLC with high precision.

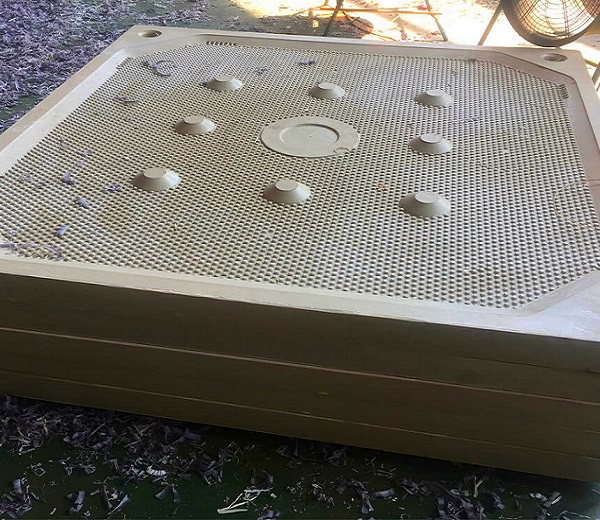

2. The filter plates are made of PP, long life span Corrosion resistant, non-toxic and tasteless

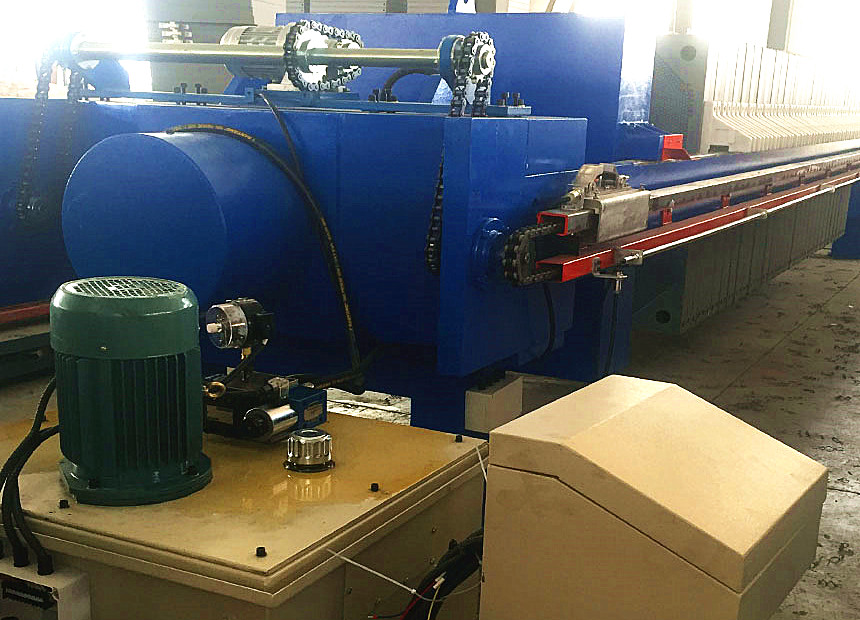

3. Hydraulic Pressing, adopting the contact meter to maintain the pressure automatically.

4. The highest working pressure could be 1.5Mpa.



Filter Press Application: Food, Chemical, Dyeing, Leather, Mining (Aluminium, Bauxite, Copper, Iron) and Electroplate.


How Filter Press Work:

The filter press separates the solid in sludge from the water, recovering the water itself and reusing it in any production cycle. And the dry filtered cakes easy to be disposed of. The simplicity of the machine guarantees high-efficiency and reliability.



How Hydraulic Filter Press Work



Filter Press Technical Parameters:

Hydraulic Chamber Filter Press With Square Plates

Model



Filter

Area

(m2)

Inner

Size

(mm)

Plate

Thickness

(mm)

Motor

Power

(kw)

Plate

Number

(Pcs)

Filter

Capacity

(L)

Working

Pressure

In

Chamber

(Mpa)

External

Size

(mm)

L*W*H

Weight

(kg)

NX-630

16

630*630

50

1.5

26

200

≤1.0

2790*1020*1200

1320

20

32

250

3096*1020*1200

1400

25

40

313

3504*1020*1200

1540

NX-800

50

800*800

60

1.5

50

750

≤1.0

4794*1246*1325

3140

60

60

900

5404*1246*1325

3470

70

70

1050

6014*1246*1325

3950

NX-1000

50

1000*1000

60

3.0

30

750

≤1.0

3984*1500*1555

4590

60

36

900

4350*1500*1555

4800

70

42

1050

4716*1500*1555

5160

80

48

1200

5082*1500*1555

5440

Plates quantity could be customized.


FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are factory, we could provide sample test, equipment manufacture, after-sale service, etc.

Q: Which country have your products been exported?
A: Many countries around the world, such asAustralia,Vietnam,Indonesia,Malaysia,Jordan,Peru, and so on.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.

Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.

Q: What's your MOQ?
A: Normally the MOQ is 1set.

Q: What is the payment terms?
A: TT and L/C are acceptable


Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.

Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.

Q: Is on site installation & commissioning available?
A: Yes.

Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
