Manual filter press is operated by hand, and Jack Pressing.
Round plate filter press is widely used in stone sewage treatment, especially for granite sewage, often match with agitator and vibration sand filter press for sand and water recycling
Lead Time:
according to the machine model and quantProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sightColor:
customizedStone Granite Sewage Mud Treatment Solid Liquid Separation Filter Press
Circular plate filter press are often applied in stone sewage treatment, famous for its high filtration pressure, less water content and clear water after filtration process.
Filter Press Technical Parameters：
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
ZJWYB-800 | 37 | Φ750 | 55 | 4 | 40 | 489 | ≤1.5 | 4300*1400*1500 6300*1400*1500 | 3700 |
72 | 80 | 967 | 4300 | ||||||
Plates quantity could be added or reduced according to customers' requirements. | |||||||||
ZJWYB-1000 | 54 | Φ920 | 60 | 5.5 | 40 | 800 | ≤1.5 | 5000*1500*1350 6200*1500*1350 7400*1500*1350 8600*1500*1350 | 5010 |
80 | 60 | 1200 | 5740 | ||||||
106 | 80 | 1600 | 6470 | ||||||
132 | 100 | 2000 | 7200 | ||||||
ZJWYB-1250 | 129 | Φ1150 | 62 | 7.5 | 60 | 1800 | ≤1.5 | 7000*1800*1900 8300*1800*1900 9600*1800*1900 | 10000 |
172 | 80 | 2400 | 11000 | ||||||
215 | 100 | 3000 | 12000 | ||||||
Question and Answers:
What is filtration system?
Filtration, the process in which solid particles in a liquid or gaseous fluid are removed by the use of a filter cloth that permits the fluid to pass through but retains the solid particles. ... In some processes used in the production of chemicals, both the fluid filtrate and the solid filter cake are recovered.
What is left after filtration?
Filtration can be used to separate an insoluble solid from a liquid, or a precipitate from the reaction mixture in which it formed. The solid which collects in the filter cloth is called the residue. The clear liquid which passes through the filter cloth is called the filtrate.
Which of the following does not influence filtration?
Which of the following does not influence filtration? Explanation: The pH of the solution does not influence the filtration of the solution. The factors that affect the filtration are temperature, density, pressure, viscosity, particle size, particle shape, charge, and corrosive.
What are the advantages of filtration?
Water filtration is cost effective, and it does not require a lot of money to maintain. The odour and taste of the water will improve. Walter filtration also gets rid of chlorine in the hard water.
Manual filter press is operated by hand, and Jack Pressing.

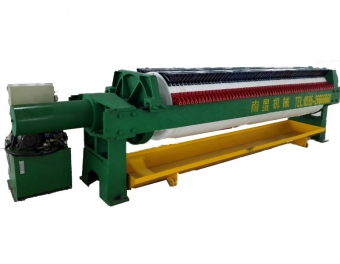

The hydraulic filter machine is often with small quantity filter plates, it could hold the working pressure by the hydraulic control station during the filtration, saving much labor cost

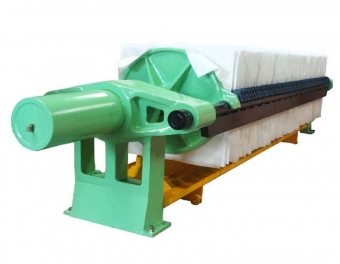

This filter press is of round PE filter plates and steel structure , often matching with ceramic plunger pump (transporting slurry), for sludge filtration.
Round Plates filter press is very good for stone sewage treatment, less water content after the filtration
Marble Granite Wastewater Filter Press Machine is famous for its high feeding pressure, and espeically for high anti abrasion.
This plate filter press is special for opening all the plates by one shift, automatic shaking device for filtered cakes discharging and automatic water collector.
This sludge filter press is of PE circular filter plates, holding pressing pressure automatically , sustaining high feeding pressure
The hydraulic filter machine could hold the working pressure by the hydraulic control station, saving much labor cost
