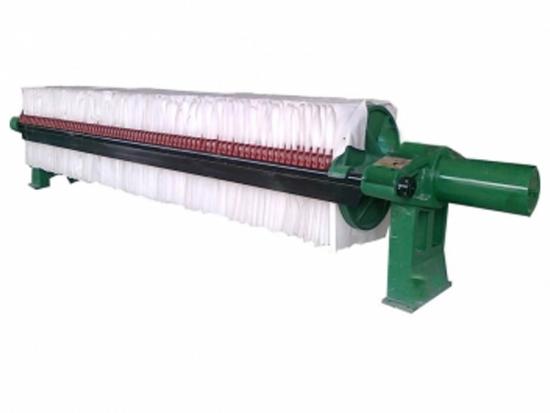

The Small Manual Jack Sewage Sludge Press Filter is a compact and user-friendly device designed for the treatment of sewage sludge. It operates with a manual jack mechanism for easy and efficient sludge pressing.

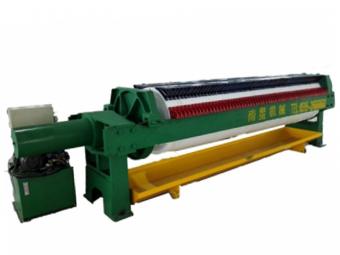

The Ceramic Glass Sludge Waste Water Press Filter Machinery is a specialized equipment designed for the filtration and treatment of waste water containing sludge from ceramic and glass industries.
Lead Time:
according to the machine model and quantProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sightColor:
customizedCeramic Glass Sludge Waste Water Press Filter Machinery
The Ceramic Glass Sludge Waste Water Press Filter Machinery provides an efficient and reliable solution for dealing with the complex waste water generated in the ceramic and glass production processes. The press filter mechanism ensures effective separation of sludge and water, reducing the pollutant load and facilitating subsequent treatment or disposal.
This machinery is constructed with high-quality materials to withstand the corrosive and abrasive nature of the waste water. Its advanced control system allows for precise operation and monitoring, ensuring optimal filtration performance.
With its ability to improve the quality of waste water and comply with environmental regulations, the Ceramic Glass Sludge Waste Water Press Filter Machinery is an essential tool for ceramic and glass manufacturers to achieve sustainable and environmentally friendly production.
Filter Press Characteristic：
1. The main parts of filter press is made of cast steel, Stable Structure and long usage life.

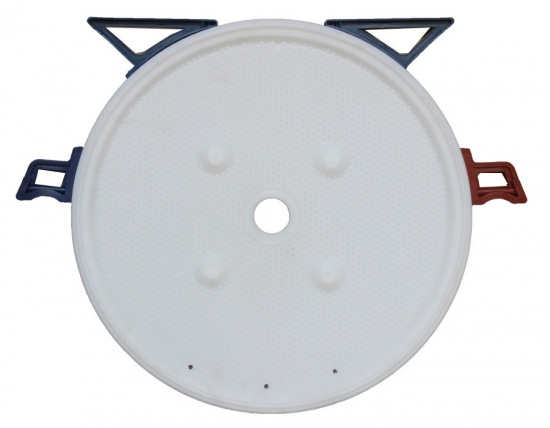

2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.
3. Adopting the contact meter to maintain the pressure automatically, saving labor labor cost and improve the working efficiency.

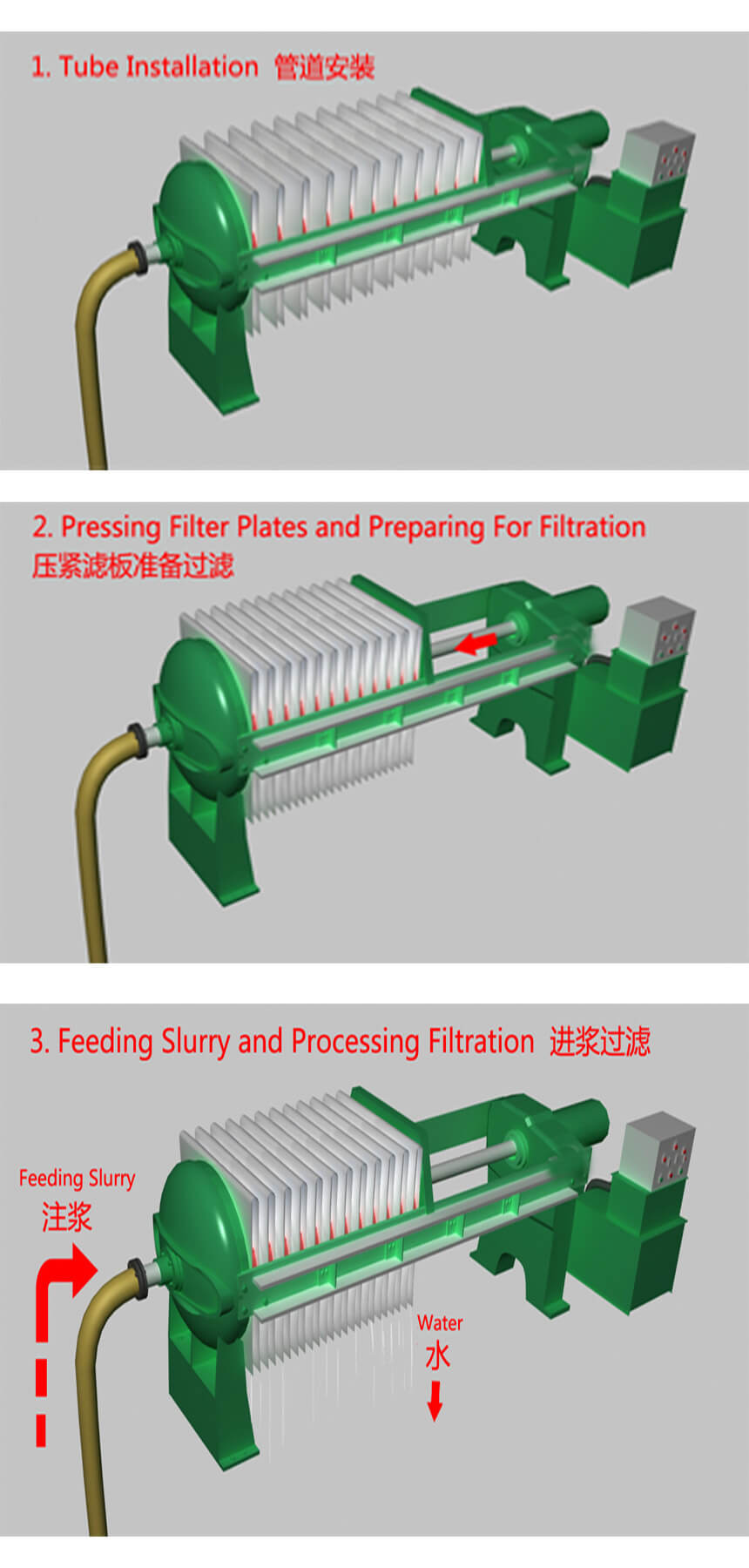

How Filter Press Work:
The filter press separates the solid in sludge from the water, recovering the water itself and reusing it in any production cycle. And the dry filtered cakes easy to be disposed of. The simplicity of the machine guarantees high-efficiency and reliability.
Filter Press Products Application：
Circular plate filter press is used in solid liquid separation industries, such as Mining, Coal, Clay, Kaolin, Wastewater Treatment (eg.: Marble, Granite, Glass, Ceramic, Electronic ceramic, etc.) , Food (Starch, Sugar) and so on.
Filter Press Technical Parameters：
Model
| Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) | Weight (kg) | ||
L | W | H | |||||||||
WYB-800 | 37 | Φ750 | 55 | 3 | 40 | 489 | ≤2.0 | 4100 | 1150 | 1170 | 2900 |
54 | 60 | 727 | 5200 | 3200 | |||||||
72 | 80 | 967 | 6300 | 3800 | |||||||
Plates could be added or reduced according to customer’s requirements.

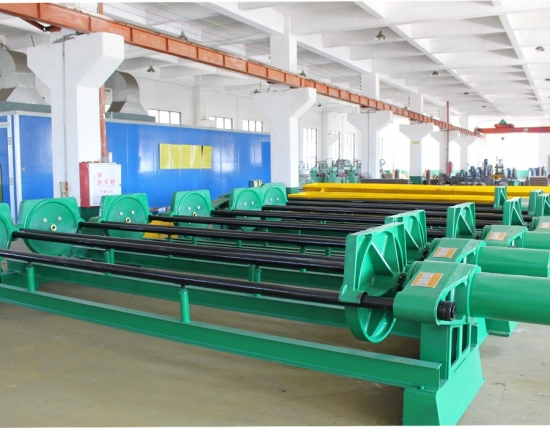

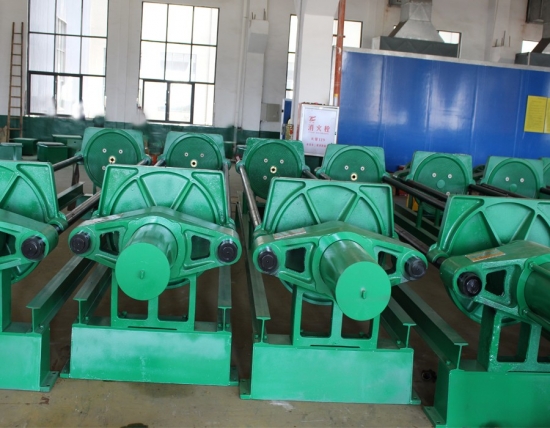

We are factory, supplying spare parts at all times, also offering professional technical support.
The Small Manual Jack Sewage Sludge Press Filter is a compact and user-friendly device designed for the treatment of sewage sludge. It operates with a manual jack mechanism for easy and efficient sludge pressing.
The Horizontal Electric Hydraulic Recessed Plate Filter Press is an advanced filtration equipment that operates horizontally and is driven by electric and hydraulic power. It features recessed plates for efficient filtration.
The Kaolin Clay Sludge Hydraulic Chamber Plate Filter Press is a specialized equipment designed for filtering kaolin clay sludge. It features a hydraulic chamber and plate structure.
The Stone Sewage Treatment Slurry Filtration Machine is a dedicated device engineered for filtering and treating the slurry in stone sewage.
The Marble Granite Wastewater Solid Liquid Separation Filter Press Machine is a specialized equipment designed for the separation of solids and liquids in marble and granite wastewater.
The Automatic Fast Open Plate Shifter Hydraulic Chamber Circular Plate Filter Press is an advanced filtration device that combines automatic operation, fast plate shifting, and a hydraulic chamber with circular plates.
The Kaolin Clay Slurry Press High Pressure Filter Plate Filtering Machine is a specialized equipment tailored for the filtration of kaolin clay slurry. It incorporates high-pressure filter plates for enhanced filtration efficiency.
The Large Capacity High Efficiency High Pressure Plate Chamber Slurry Filter Press is a cutting-edge filtration equipment designed to handle large volumes of slurry with high efficiency and under high pressure.This sludge filter press is famous for its big filter plate, external diameter is 1600mm, biggest capacity is 3.6m3.
