Automatic Fast Open Plate Shifter Hydraulic Chamber Circular Plate Filter Press

This plate filter press is special for opening all the plates by one shift, automatic shaking device for filtered cakes discharging and automatic water collector.

  • Lead Time:

    According to size and quantity
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    T/T, LC at sight
  • Inventory:

    1
  • MOQ:

    1
  • Product Details

Automatic Fast Open Plate Shifter Hydraulic Chamber Circular Plate Filter Press

Filter Press Characteristic:

1. The main parts of filter press is made of cast steel, High strength, Stable Structure and long usage life.

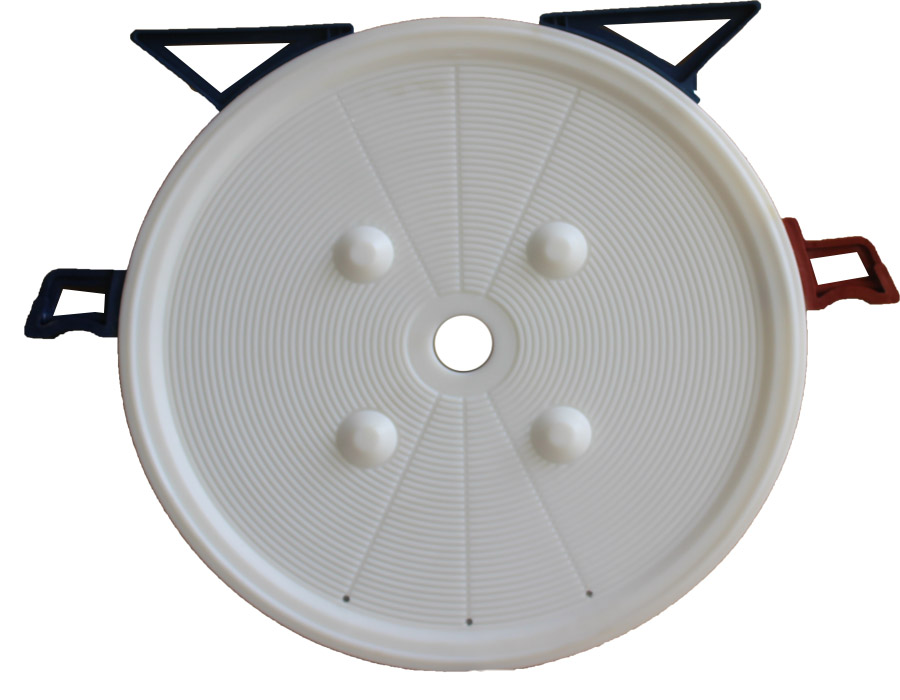

2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.

3. Adopting the contact meter to maintain the pressure automatically, saving the labor cost and improve the working efficiency.

4. It is of automatic plate opening device, opening all the plates by one shift.

5. It is of automatic shaking device, discharging filtered cakes automatically

6. Customer could also choose the automatic water collector

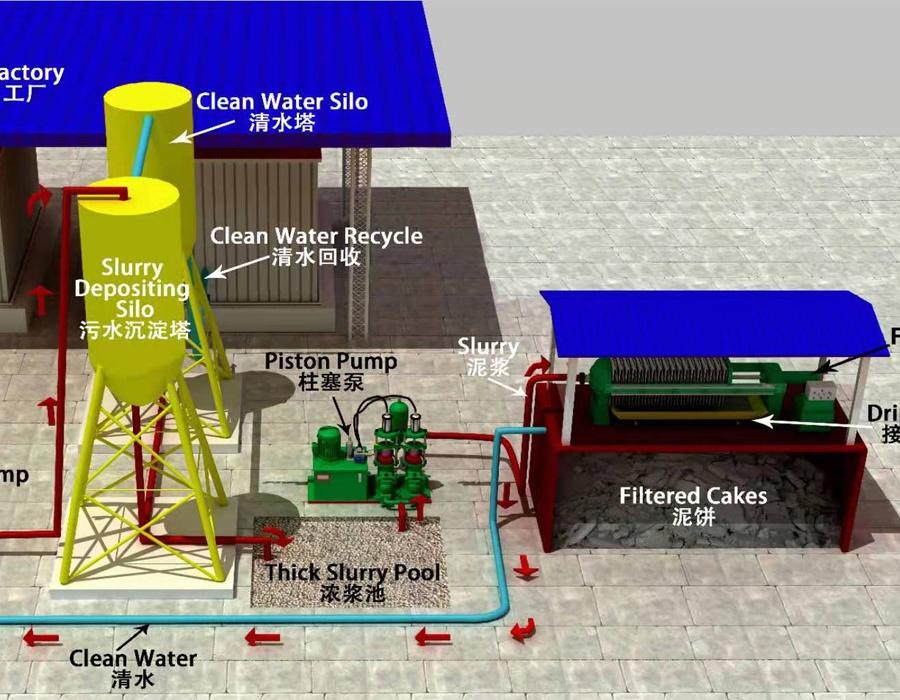

How Filter Press Works:

Ceramic plunger pump transports the slurry into the filter press from the feeding head, the chambers created by the plates are filled up with the slurry, the cloth (specifically developed for each material) and the high pressure dry the cakes, faster and better. The clean water is discharged into water collector, ready to be reused, and the cakes can now be disposed of easily.

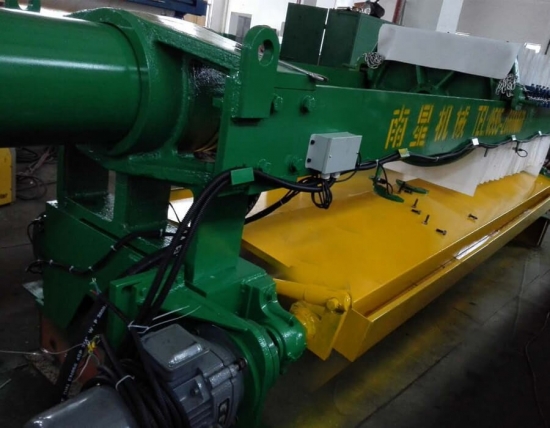

Fast Open Filter Press


Filter Press Application

 Mining, Washed Coal, Waste water Treatment(Ceramic, marble, granite, glass and so on) , Kaolin, Clay, Sand Washing and other solid-liquid separation.

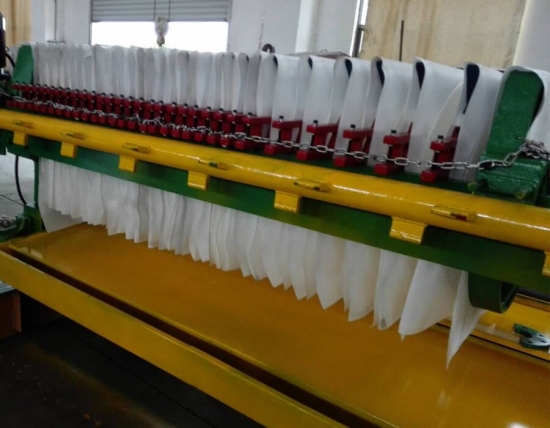

Sewage Filter Press

Filter Press Technical Parameters

Model



Filter

Area

 (m2)

Inner

Size

 (mm)

Plate

Thickness

 (mm)

Motor

Power

 (kw)

Plate

Number

 (Pcs)

Filter

Capacity

 (L)

Working

Pressure

In

Chamber

 (Mpa)

External  Size

 (mm)

Weight

 (kg)

L

W

H

KJWYB650-30

20

650

50

7.5

30

300

1.5

6800

1300

1200

4000

KJWYB1000-30

40

920

60

7.5

30

540

7700

1600

1500

6000

Plates could be added or reduced according to customer’s requirements.


Other Introduction:

Our company could help customer to design wastewater treatment flow.

Our company is the main machineries supplier for clay project of Dalian Insulator Group Co., Ltd., Fujian Guanfu Modern Household Wares Co.,Ltd.,  Fujian Jinjiang Wanli Ceramics Industry Co., Ltd., Huihuang Plumbing Group Co. ,Ltd. etc. For the stone wastewater treatment, our company is also the tier one suppliers for stone wastewater treatment of Liven Stone, Xishi Group, Kangli Stone Group, Huahui Stone etc.

Filter Press For Waste Water
