Marble Granite Wastewater Solid Liquid Separation Filter Press Machine

Marble Granite Wastewater Filter Press Machine is famous for its high feeding pressure, and espeically for high anti abrasion.

  • Lead Time:

    according to the machine model and quant
  • Product Origin:

    china
  • Shipping Port:

    xiamen
  • Payment:

    T/T, LC at sight
  • Color:

    customized
  • MOQ:

    1
  • Product Details

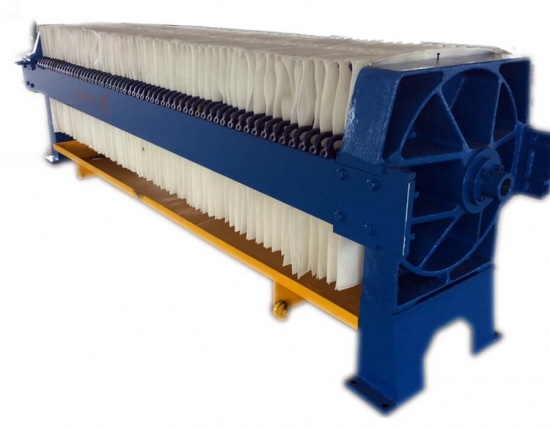

Marble Granite Wastewater Solid Liquid Separation Filter Press Machine


Filter Press Characteristic:

1. The main parts of filter press is made of cast steel, Stable Structure and long usage life.

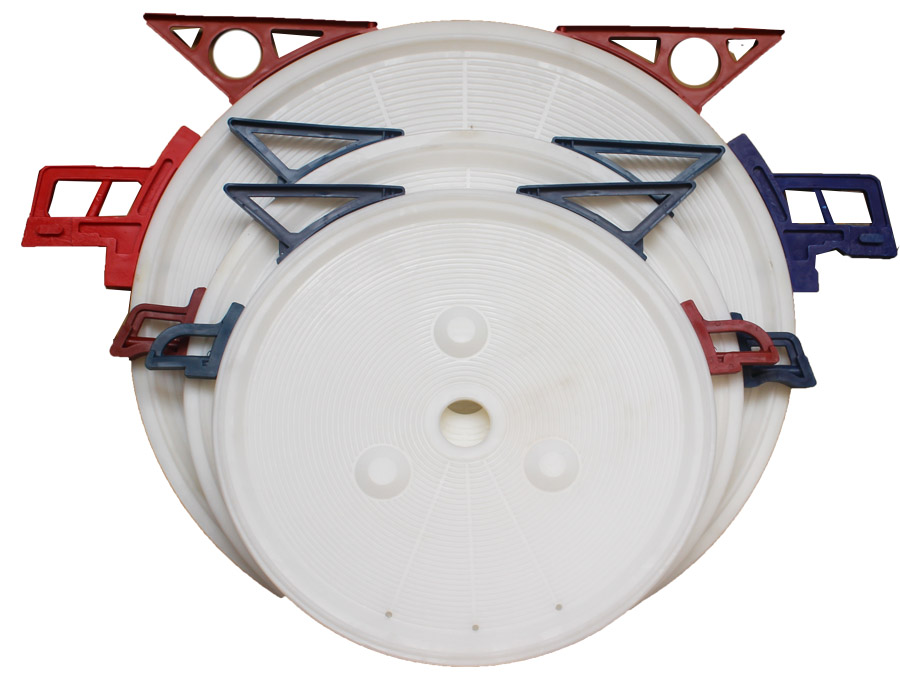

2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.

3. Filter plates has moutain and valley design, good for preventing slurry spout.

4. Adopting the contact meter to maintain the pressure automatically, saving the labor cost and improve the working efficiency.

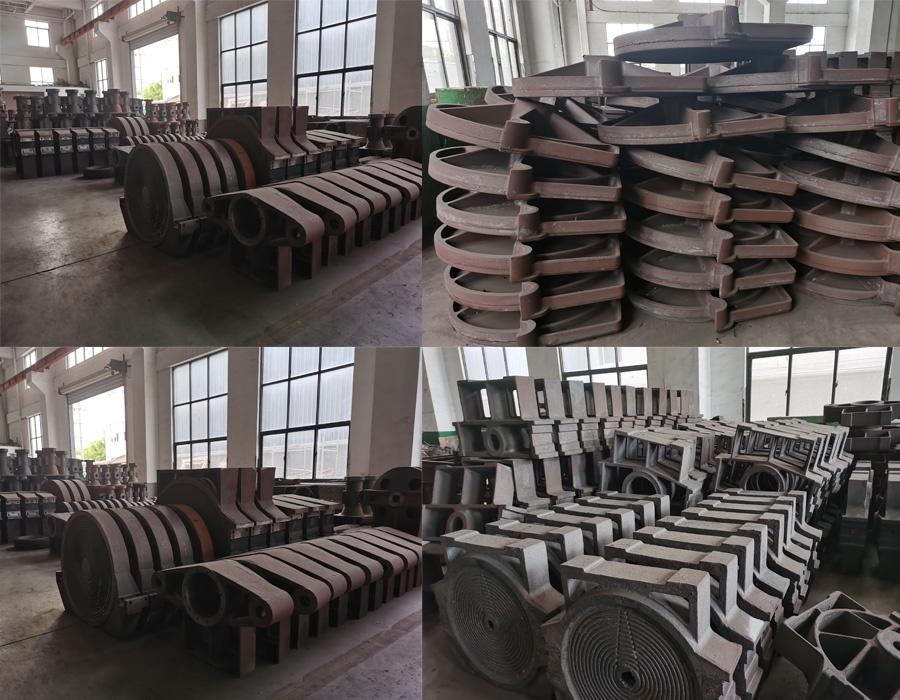

Cast Steel Filtering Machine

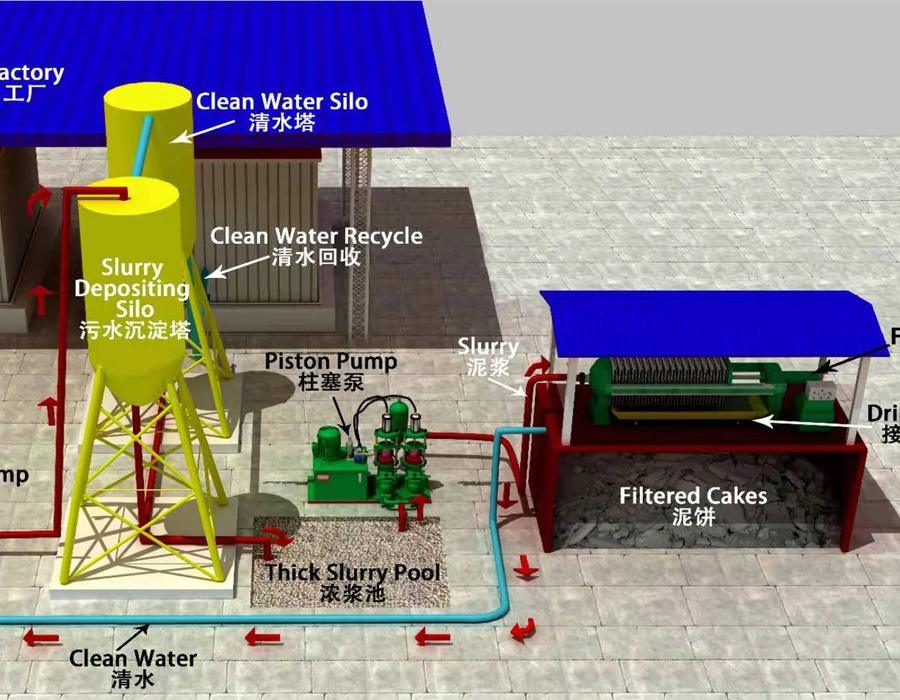

Filter Press Application:

Widely applied in Mining, Waste water Treatment(Ceramic, marble, granite, glass and so on) , Kaolin, Clay, Sand Washing and other solid-liquid separation.

Filtration Press


Filter Press Technical Parameters:

Model

Filter

Area

(m2)

Inner

Size

(mm)

Plate

Thickness

(mm)

Motor

Power

(kw)

Plate

Number

(Pcs)

Filter

Capacity

(L)

Working

Pressure

In

Chamber

(Mpa)

External Size

(mm)

L*W*H

Weight

(kg)

WYB-650

27

Φ650

50

3

40

367

≤1.5

3950*1150*1170

4800*1150*1170

5800*1150*1170

2500

40

60

546

2700

54

80

725

3000

Plates quantity   could be added or reduced according to customers' requirements.

Pre-sale service:

1.Your inquiry will be replied within 8 hours.
2.Help you to select suitable model

3. Spare parts are in stock

After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas


Press Filter Filter Press Spare Parts
