Manual filter press is operated by hand, and Jack Pressing.

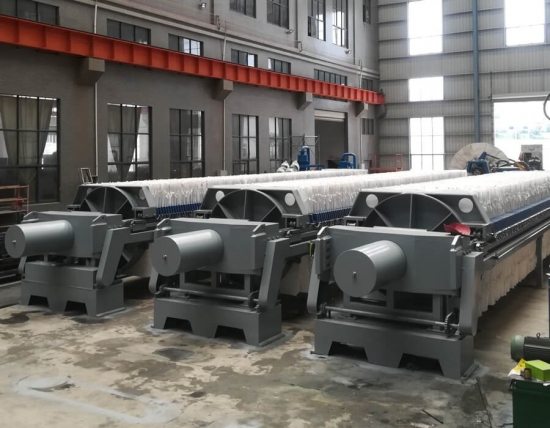

This sludge filter press is famous for its big filter plate, external diameter is 1600mm, biggest capacity is 3.6m3.
Lead Time:
according to the machine model and quantProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sightColor:
customizedLarge Capacity High Efficiency High Pressure Plate Chamber Slurry Filter Press
Filter Press Characteristic：

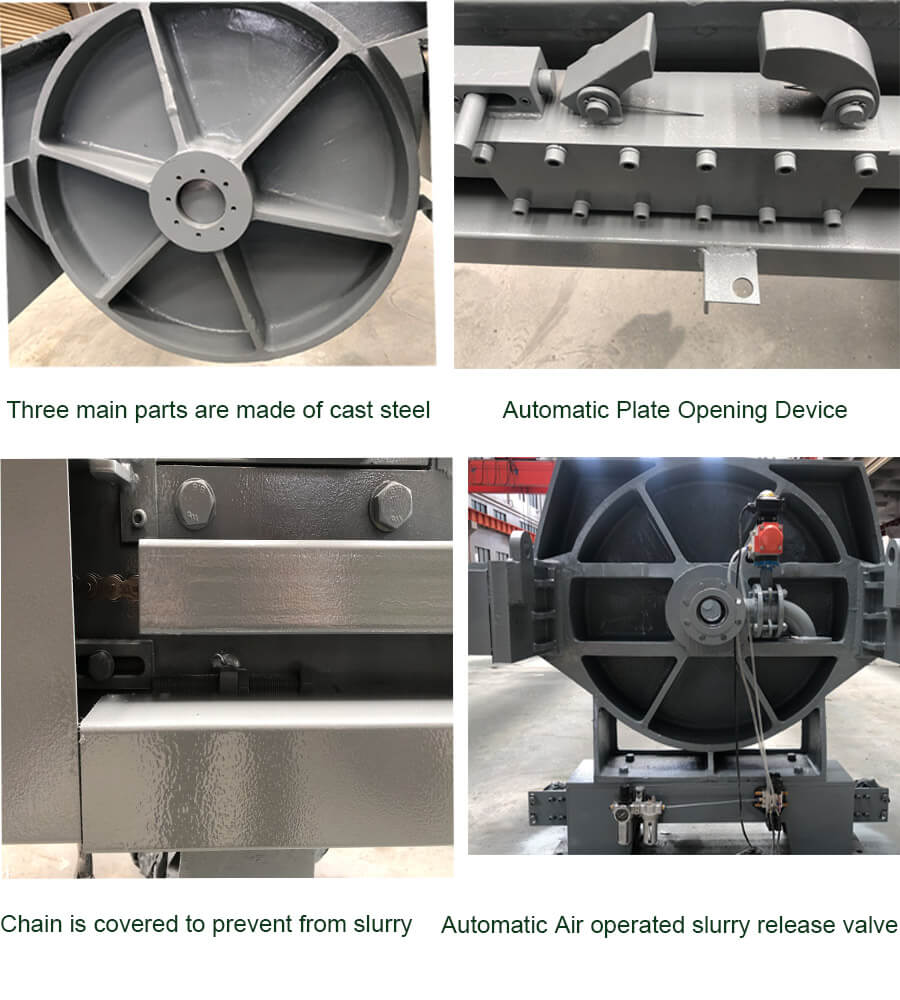

1. The main parts of filter press is made of cast steel, High strength, Stable Structure and long usage life.
2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.
3. Choosing the filter cloth according to the slurry characteristic and high working pressure filter press.
4. Adopting the contact meter to maintain the pressure automatically.
5. The filter plates could be set to be automatic plate one by one, one by five, one by three, dpending on the filter press model .
Filter Press Working Principle：
The slurry is sent by slurry piston pump to chambers which formed by filter plates. Then filtrating media (filter cloth) separates solid and liquid. After the filtration finished, stopping the feeding, releasing the slurry pressure, press the returning button, shifting the plates automatically.
Filter Press Application：
Circular plate filter press is used in solid liquid separation industries, such as
such as Mining, Clay, Kaolin, Wastewater Treatment (eg.: Marble, Granite, Glass, Ceramic, Electronic ceramic, etc.) , Food (Starch, Sugar) and so on.
Technical Parameters：
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
ZJWYB-1600 | 356 | 1500 | 70 | 7.5+1.5 | 100 | 6000 | ≤1.5 | 10600*2100*2100 9200*2100*2100 7800*2100*2100 | 20000 |
286 | 80 | 4800 | 18000 | ||||||
215 | 60 | 3600 | 16000 | ||||||
Plates quantity could be added or reduced according to customers' requirements. | |||||||||
Pre-sale service:
1.Your inquiry will be replied within 8 hours.
2.Help you to select suitable model
3. Spare parts are in stock
After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas
Manual filter press is operated by hand, and Jack Pressing.
The hydraulic filter machine is often with small quantity filter plates, it could hold the working pressure by the hydraulic control station during the filtration, saving much labor cost

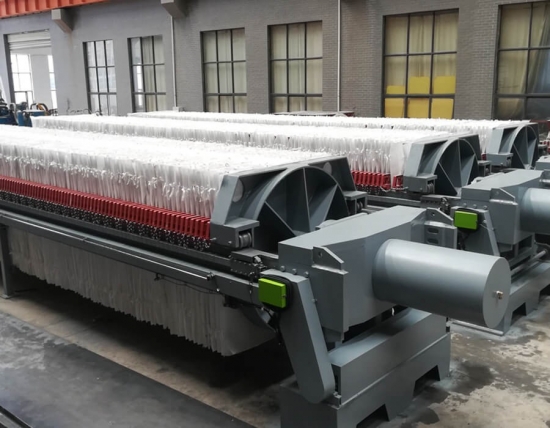

This filter press is of round PE filter plates and steel structure , often matching with ceramic plunger pump (transporting slurry), for sludge filtration.
Round Plates filter press is very good for stone sewage treatment, less water content after the filtration
Marble Granite Wastewater Filter Press Machine is famous for its high feeding pressure, and espeically for high anti abrasion.
This plate filter press is special for opening all the plates by one shift, automatic shaking device for filtered cakes discharging and automatic water collector.
This sludge filter press is of PE circular filter plates, holding pressing pressure automatically , sustaining high feeding pressure
The hydraulic filter machine could hold the working pressure by the hydraulic control station, saving much labor cost
