The High Pressure Cast Steel Hydraulic Plate Chamber Filter Press Machine is a powerful and sophisticated filtration system. It features high-pressure operation and is constructed with cast steel for durability.
Lead Time:
according to the machine model and quantProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sightColor:
customizedHigh Pressure Cast Steel Hydraulic Plate Filter Machine
The High Pressure Cast Steel Hydraulic Plate Chamber Filter Press Machine offers exceptional performance in demanding filtration applications. The high pressure capability enables efficient separation of solids and liquids, even in challenging materials.
The cast steel construction provides robustness and resistance to wear and corrosion, ensuring a long service life in harsh industrial environments. The hydraulic plate chamber design ensures precise control and uniform pressure distribution.
This machine is widely used in industries such as mining, chemical, and environmental protection, where reliable and high-capacity filtration is essential. It helps improve production efficiency, reduce waste, and meet strict environmental standards.
Filter Press Characteristic：

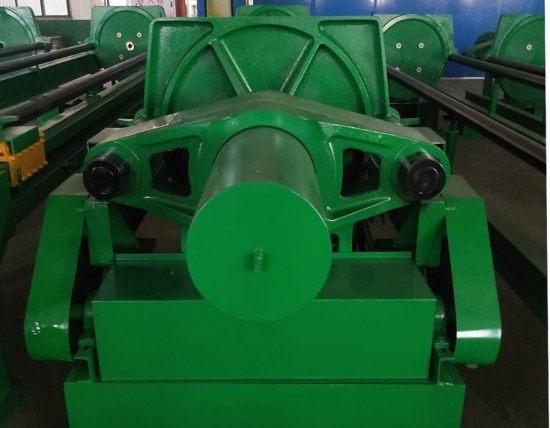

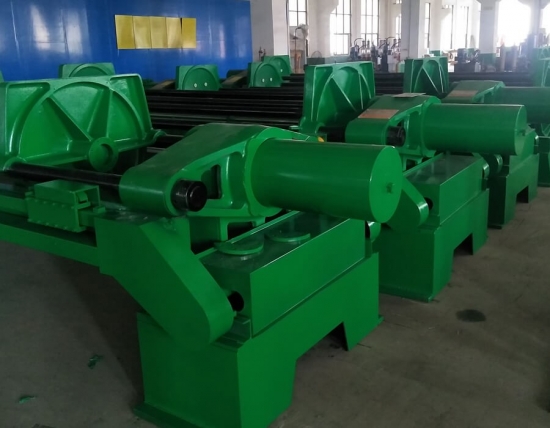

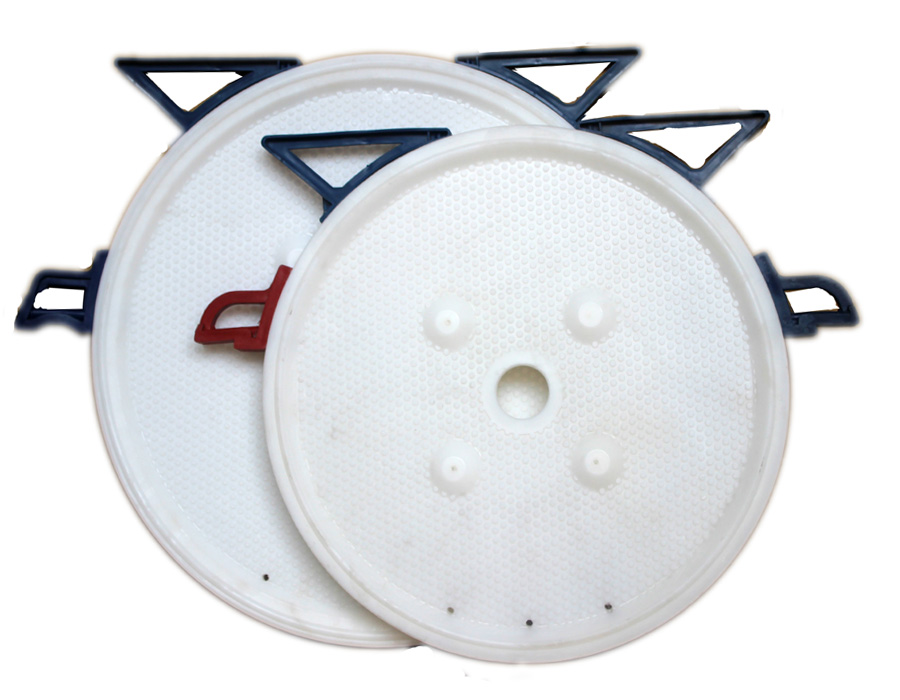

1. The main parts of filter press is made of cast steel.The filter plates are made of high intensity HDPE, which could sustain high feeding pressure, the highest value could be 2.0Mpa.
2. The hydraulic parts adopting the contact meter to maintain the pressure automatically, saving labor cost, improve the working efficiency.
3. The automatic plate shifter could help you to opening plates one by one automatically

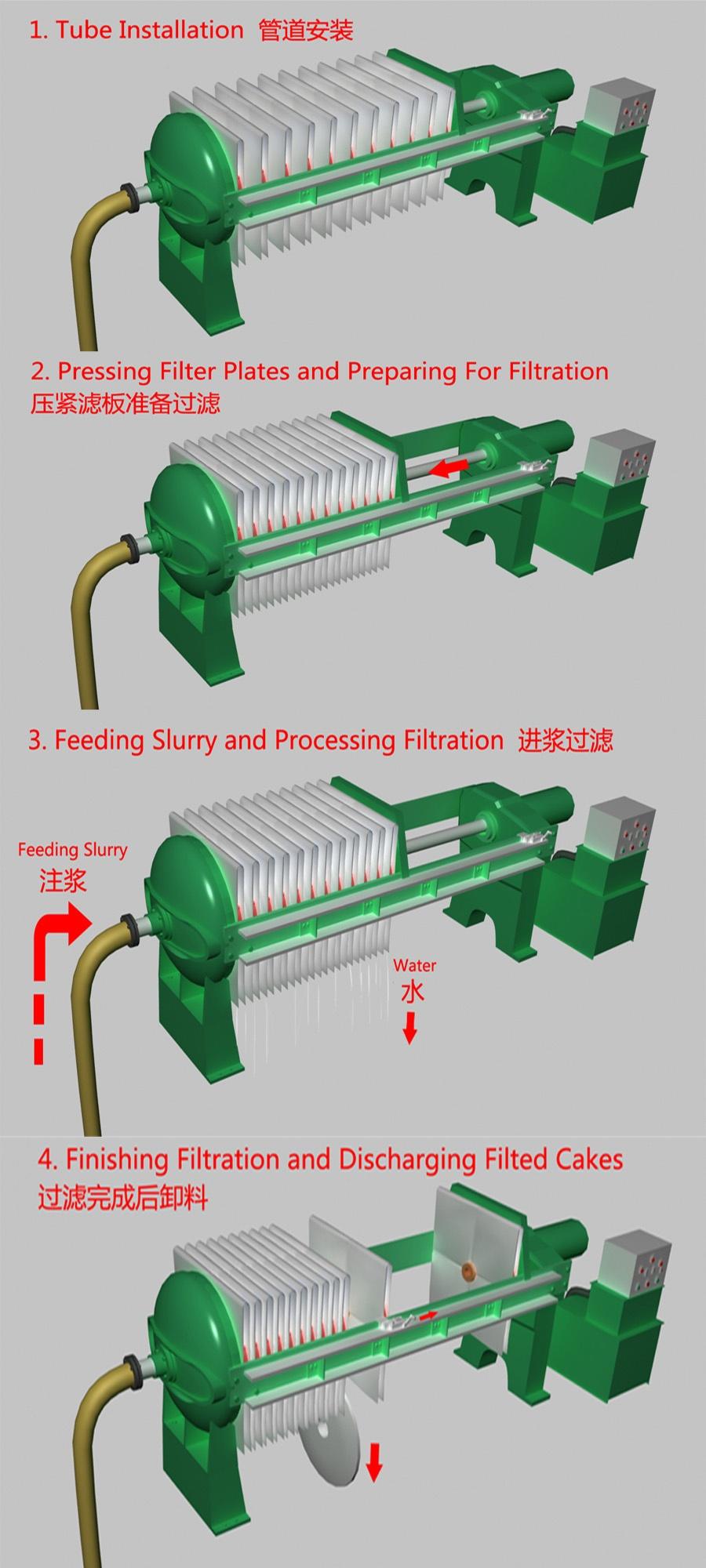

How Filter Press Work：
Filter Press Application：
This filter press could be widely applied in Mining, Waste water Treatment(Ceramic, marble, granite, glass and so on) , Kaolin, Clay, Sand Washing and other solid-liquid separation.
Filter Press Technical Parameters:
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
ZJWYB-800 | 37 | Φ750 | 55 | 4 | 40 | 489 | ≤1.5 | 4300*1400*1500 6300*1400*1500 | 3700 |
72 | 80 | 967 | 4300 | ||||||
Plates quantity could be added or reduced according to customers' requirements. | |||||||||
ZJWYB-1000 | 54 | Φ920 | 60 | 5.5 | 40 | 800 | ≤1.5 | 5000*1500*1350 6200*1500*1350 7400*1500*1350 8600*1500*1350 | 5010 |
80 | 60 | 1200 | 5740 | ||||||
106 | 80 | 1600 | 6470 | ||||||
132 | 100 | 2000 | 7200 | ||||||
