Hydraulic Feed Pump
Products
Home /

Filter Press

/

Circular Filter Plate Filter Press

/PE Filter Plate Hydraulic Chamber Cast Steel Filter Press

PE Filter Plate Hydraulic Chamber Cast Steel Filter Press

This cast steel filter press is special for shifting several plates by one time, some model could be five by one, some could be three by one. This cast steel filter press is special for shifting several plates by one time, some model could be five by one, some could be three by one.


  • Lead Time:

    according to the machine model and quant
  • Product Origin:

    china
  • Shipping Port:

    xiamen
  • Payment:

    T/T, LC at sight
  • Color:

    customized
  • MOQ:

    1
  • Product Details

PE Filter Plate Hydraulic Chamber Cast Steel Filter Press


Filter Press Characteristic:

  1. Filter Plate has mountain and valley design, which could high efficient prevent slurry spout.

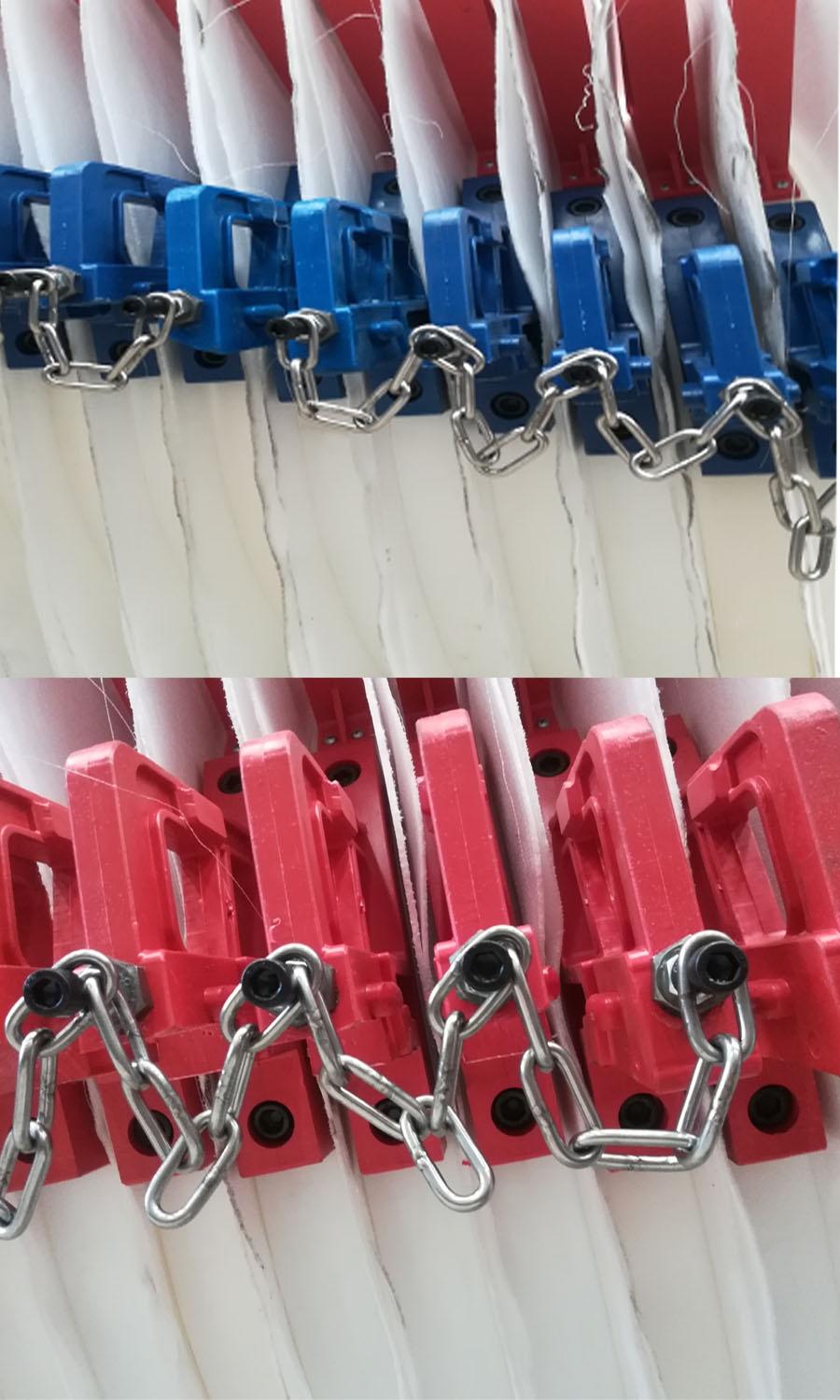

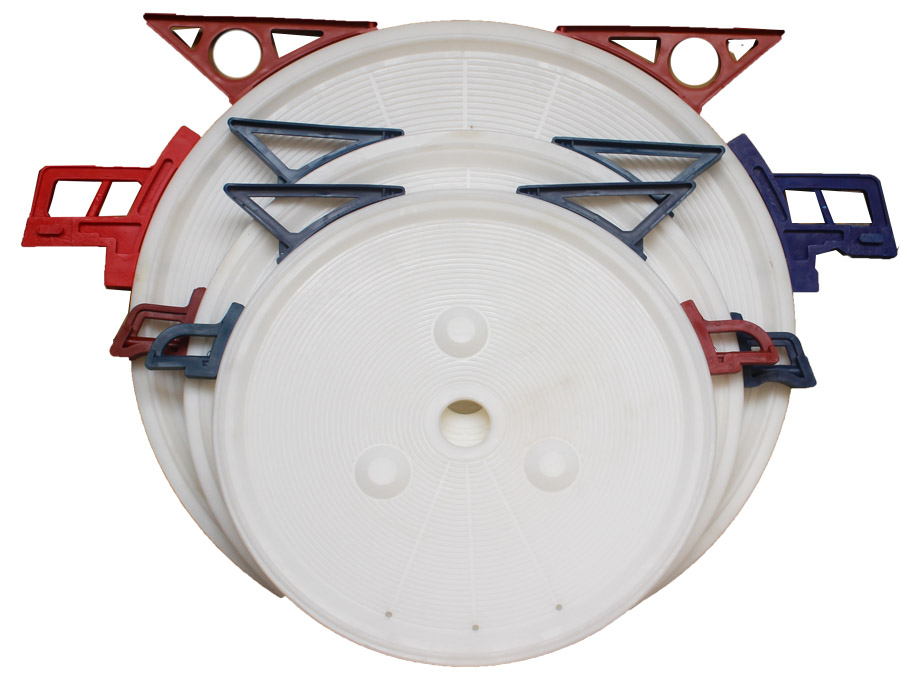

    High Pressure Filter Plate

  2. According to the model, the automatic plate open device could shift plates 5pcs by one shift and 3pcs by one shift.

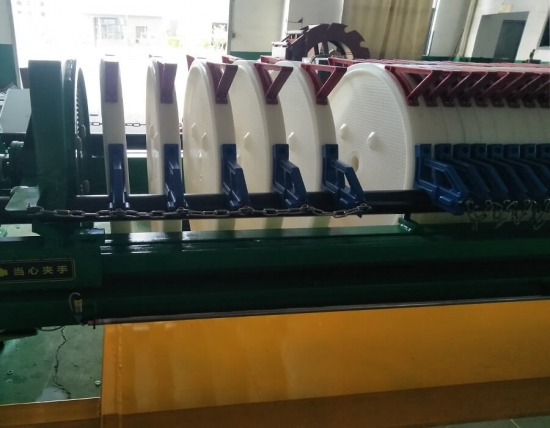

    Filter Press Accessory

    3. Main structure is made of cast steel and raw PE material, which let filter press sustain high feeding pressure.

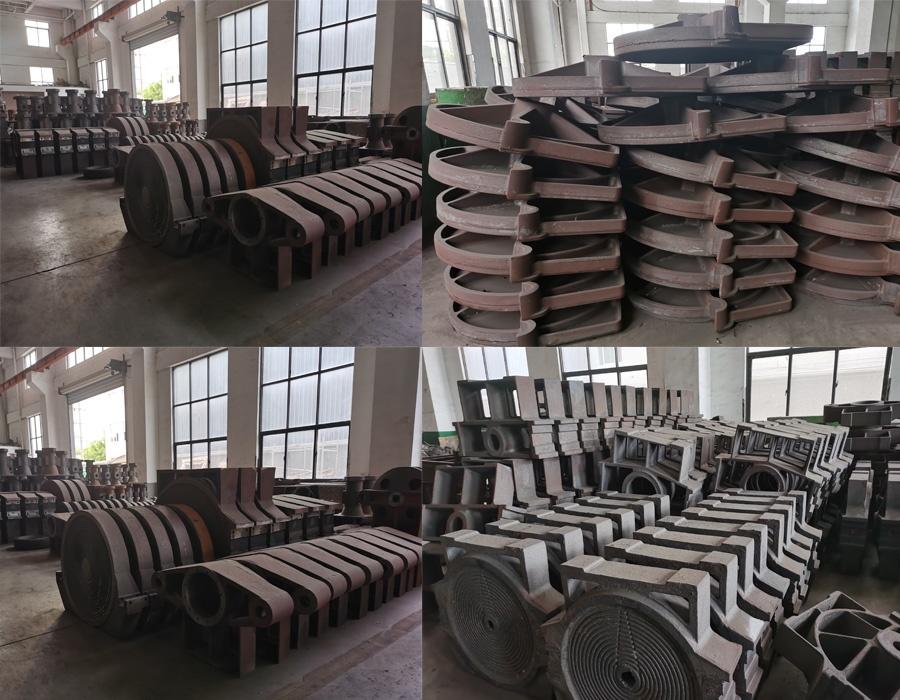

    Filter Press Manufacturing



Technical Parameters:


Model

Filter

Area

(m2)

Inner

Size

(mm)

Plate

Thickness

(mm)

Motor

Power

(kw)

Plate

Number

(Pcs)

Filter

Capacity

(L)

Working

Pressure

In

Chamber

(Mpa)

External Size

(mm)

L*W*H

Weight

(kg)

K5ZWYB-800

45

Ф750

55

4

50

604

≤1.5

5800*1400*1500

3900

72

75

906

7300**1400*1500

4400

K5ZWYB-1000

106

Ф920

60

4

80

1600

7700*1500*1600

7000

125

95

1900

8600*1500*1600

7200

Plates quantity   could be added or reduced according to customers' requirements.

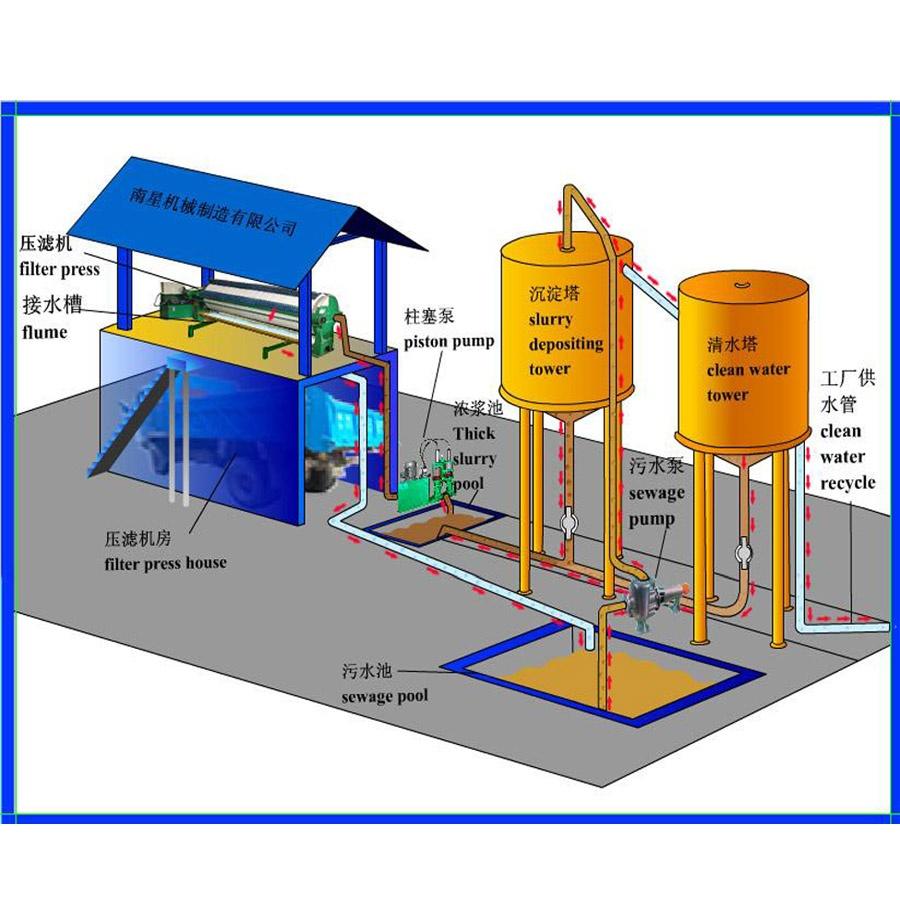

Filter Press Working Flow Chart:

The slurry will be transported to the filter press chambers, filter press do solid liquid separation, after that, the solid will be removed, clean water could be recycled by the factory.

How Press Filter Work

Our products are famous for its advanced technology, reliable quality and stable operation, gaining the great reputations and supports from our customers. Our company is the main machineries supplier for clay project of Dalian Insulator Group Co., Ltd., Fujian Guanfu Modern Household Wares Co.,Ltd.,  Fujian Jinjiang Wanli Ceramics Industry Co., Ltd., Huihuang Plumbing Group Co. ,Ltd. etc. For the stone wastewater treatment, our company is also the tier one suppliers for stone wastewater treatment of Liven Stone, Xishi Group, Kangli Stone Group, Huahui Stone etc. What’s more, our products are the environmental products certified by National Environmental Protection Association, widely used in ceramic, stone, sand washing, mining, electroplating, chemical, leather, food etc.
