Electric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump

The duplex piston pump is design for transporting think slurry for feeding filter press or for spray-dreyers

  • Lead Time:

    according to machine model and quantity
  • Product Origin:

    china
  • Shipping Port:

    xiamen
  • Payment:

    T/T, LC at sight,
  • Color:

    customized
  • Product Details

Electric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump


Characteristic

  1. The deplex piston pump is design for deliverying slurry with the pressure, normally, before come out of factory, the pump pressure is often set to be 1.5map.

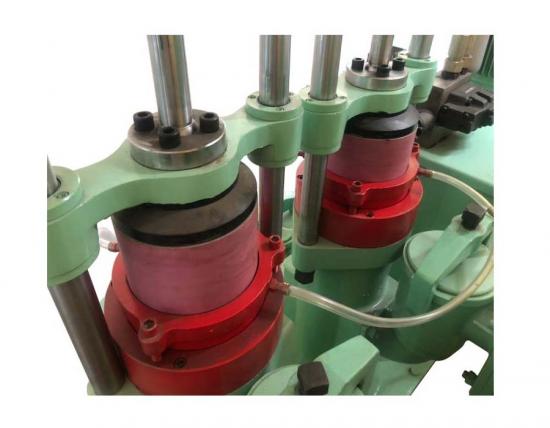

  2. The piston slurry mud pump is formed by two cylinders with porcelain piston, by suction and delivery valves, by an air tank and by a manometer which is installed on the air tank to check the mud pressure.




How Ceramic Plunger Pump Work:

  1. The electric motor drive the oil gear pump, which is inside the oil tank of duplex piston pump, to develop an oil delivery which feeds the upper and lower oil cylinder, by means of the distributor with mechanical pilots, to let the pistons work in turns, the porcelain piston, in turn, which is connected to the hydraulic piston , is alternately driven. And thanks of the suction and delivery valves, begins the fluid pumping.



Ceramic Plunger Pump Technical Parameters

YB Series Sludge Piston Pump

Model

Flux

(m3/h)

Pressure

Range

(Mpa)

Rated

Pressure

(Mpa)

Motor

Power

(kw)

Diameter

Suction And

Discharge

mm

External Size

(L*W*H) (mm)

Weight

 (Kg)

YB-85

3.0

0-2.5

2.0

4

Ø76

1300*850*1600

482

YB-120

7.1

0-2.5

2.0

11

Ø76

1600*1300*1800

815

YB-140

10

0-2.5

2.0

11

Ø76

1600*1300*1800

870

YB-200

19

0-2.5

2.0

18.5

Ø89

1730*1400*1900

1127

YB-250

30

0-2.5

2.0

22

Ø133

2000*1700*2100

1600

YB-300

40

0-2.5

2.0

30

Ø133

2100*1900*2200

2400


Ceramic Plunger Pump Function

It is mainly applicable in supplying slurry to various kinds of spray-driers, also in long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
