The High Pressure Industrial Sewage Effluent Transfer Dewatering Pump is a powerful and specialized pump designed for the transfer and dewatering of industrial sewage effluent.
Lead Time:
according to machine model and quantityProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sight,Color:
customizedElectric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump
The High Pressure Industrial Sewage Effluent Transfer Dewatering Pump offers an efficient and reliable solution for handling the complex and demanding task of industrial sewage management. With its high-pressure capabilities, it can forcefully transfer the sewage effluent over long distances and through various pipelines.
This pump is engineered to effectively dewater the sewage, reducing the moisture content and facilitating easier handling and disposal. Its robust construction and advanced design ensure durability and consistent performance even in harsh industrial environments.
In industrial settings such as factories, manufacturing plants, and wastewater treatment facilities, the High Pressure Industrial Sewage Effluent Transfer Dewatering Pump is an essential piece of equipment for maintaining a clean and compliant operational environment.
Characteristic
The deplex piston pump is design for deliverying slurry with the pressure, normally, before come out of factory, the pump pressure is often set to be 1.5map.

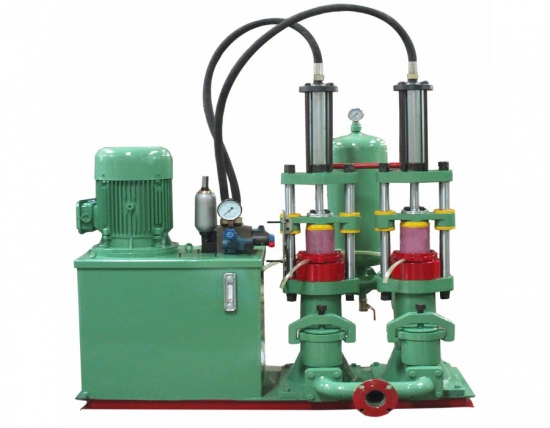

The piston slurry mud pump is formed by two cylinders with porcelain piston, by suction and delivery valves, by an air tank and by a manometer which is installed on the air tank to check the mud pressure.
How Ceramic Plunger Pump Work:
The electric motor drive the oil gear pump, which is inside the oil tank of duplex piston pump, to develop an oil delivery which feeds the upper and lower oil cylinder, by means of the distributor with mechanical pilots, to let the pistons work in turns, the porcelain piston, in turn, which is connected to the hydraulic piston , is alternately driven. And thanks of the suction and delivery valves, begins the fluid pumping.
Ceramic Plunger Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400 |
Ceramic Plunger Pump Function
It is mainly applicable in supplying slurry to various kinds of spray-driers, also in long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
We are factory, welcome to visit us!
The Hydraulic Ceramic Piston Kaolin Clay Slurry Pump is a specialized pump designed for handling kaolin clay slurry with a hydraulic ceramic piston mechanism.Ceramic piston pump is famous for its duplex ceramic pistons, the highest working pressure could be 2.0Mpa.Lead time according to machine model and quantity Product Originchina Shipping Portcustomized PaymentT/T, LC at sight, Colorcustomized Inventory20MOQ1
The Thick Slurry Transport Hydraulic Ceramic Plunger Pump is a specialized pump engineered for transporting thick slurry efficiently.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The YB300 Variable Flow Slurry Piston Pump is a specialized pump designed for handling slurry with variable flow rates.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press is a specialized pump designed for transporting sludge in filter press systems. It utilizes hydraulic power and features ceramic plungers for enhanced durability.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Electric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump is a sophisticated pumping device that combines electric and hydraulic power. It is constructed with cast iron and features a duplex piston design for handling sewage, slurry, and mud.
The Ceramic Sewage Sludge Mud Reciprocating Piston Pump is a specialized pump engineered for the transportation of sewage sludge and mud. It incorporates ceramic components for enhanced durability and performance.
The Wastewater Slip Plunger Pump For Stone Sewage is a specialized pump designed to handle the wastewater from stone processing. It is engineered to efficiently transfer and manage the sewage.
The Hydraulic Electric Duplex Ceramic Piston Mud Pump is a sophisticated pumping solution that combines hydraulic and electric power for efficient handling of mud. It features duplex ceramic pistons for enhanced durability and performance.
