Ceramic piston pump is famous for its duplex ceramic pistons, the highest working pressure could be 2.0Mpa.
Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
Lead Time:
according to machine model and quantityProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sight,Color:
customizedInventory:
20MOQ:

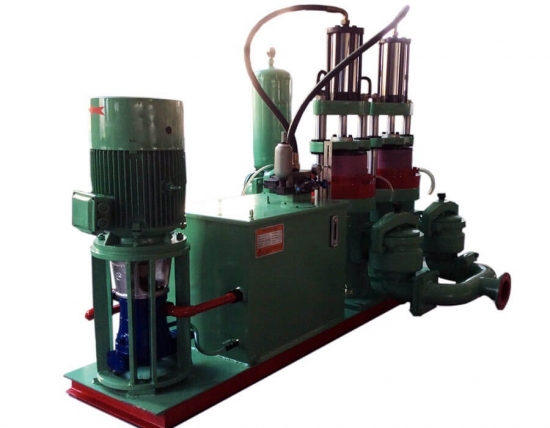

1YB-300 Variable Flow Slurry Piston Pump
Variable Piston Pump Characteristic
Oil pump is outside, easy wearing and maintain
Compared to normal type, saving electricity by 30% during working.
Variable Flow Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1800*850*1600 | 530 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 2200*1300*1800 | 860 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 2200*1300*1800 | 920 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 2300*1400*1900 | 1250 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2600*1700*2100 | 1700 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2700*1900*2200 | 2600 |
Variable Flow Pump Application
Long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
Ceramic piston pump is famous for its duplex ceramic pistons, the highest working pressure could be 2.0Mpa.
Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The duplex piston pump is design for transporting think slurry for feeding filter press or for spray-dreyers
The sewage effluent pump is hydraulic driven, mainly used for transfer industrial slurry, when it match with the filter press, it will delivery the slurry with the pressure, which help the filter press for dewatering.
This ceramic sludge pump is one piston pump reciprocating working, it is suitable for long distance sludge transpotation.
Slip piston pump is widely use in transporting thick stone wastewater, such as in marble wastewater treatment and granite wastewater treatment.
Ceramic piston pump is famous for its duplex ceramic pistons reciprocating working to transport slurry.
