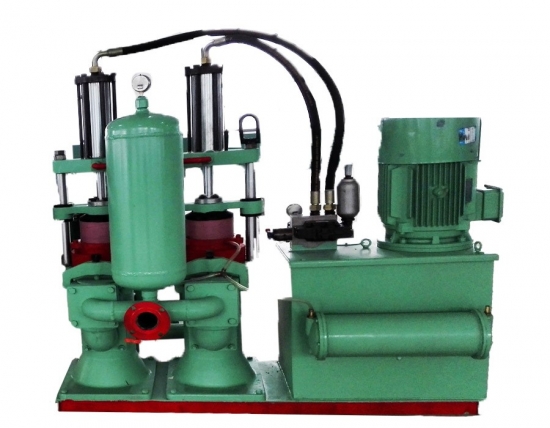

The Hydraulic Electric Duplex Ceramic Piston Mud Pump is a sophisticated pumping solution that combines hydraulic and electric power for efficient handling of mud. It features duplex ceramic pistons for enhanced durability and performance.
Lead Time:
according to machine model and quantityProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sight,Color:
customizedHydraulic Electric Duplex Ceramic Piston Mud Pump
The Hydraulic Electric Duplex Ceramic Piston Mud Pump provides a reliable and powerful pumping action. The hydraulic and electric power integration ensures smooth and consistent operation, even in demanding conditions.
The ceramic pistons offer excellent resistance to wear and corrosion, prolonging the pump's lifespan and reducing maintenance needs. This makes it suitable for a wide range of applications where efficient mud transfer is crucial.
Whether in construction, mining, or industrial processes, the Hydraulic Electric Duplex Ceramic Piston Mud Pump is a trusted choice for ensuring the seamless movement of mud and enhancing overall productivity.
Ceramic Mud Pump Characteristic
1. Hydraulic driven, two ceramic pistons working up and down stably
2. The highest feeding pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, the pressure could be adjusted.
3. Pistons are made of alumina ceramics,of great abrasion resistance and corrosion resistance.
How Ceramic Plunger Pump Work:
YB series hydraulic piston pump have been studied for transporting thick slurry to the filter press or spray-driers. The pump is formed by: two pistons, run by two hydraulic cylinders; suction and delivery valves which can be easily disassembled for rapid inspection or for cleaning the pump; an air accumulator; a control pressure gauge; a valve to adjust the working pressure at any value (within the fixed limits), and a safty valve. The pistons are made of alumina ceramic, equipped with gaskets made of special wear resistant material with a low coefficient of friction.
Ceramic Plunger Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400 |
Ceramic Plunger Pump Function
It is mainly applicable in supplying slurry to various kinds of spray-driers, also in long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
The Hydraulic Ceramic Piston Kaolin Clay Slurry Pump is a specialized pump designed for handling kaolin clay slurry with a hydraulic ceramic piston mechanism.Ceramic piston pump is famous for its duplex ceramic pistons, the highest working pressure could be 2.0Mpa.Lead time according to machine model and quantity Product Originchina Shipping Portcustomized PaymentT/T, LC at sight, Colorcustomized Inventory20MOQ1
The Thick Slurry Transport Hydraulic Ceramic Plunger Pump is a specialized pump engineered for transporting thick slurry efficiently.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The YB300 Variable Flow Slurry Piston Pump is a specialized pump designed for handling slurry with variable flow rates.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press is a specialized pump designed for transporting sludge in filter press systems. It utilizes hydraulic power and features ceramic plungers for enhanced durability.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Electric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump is a sophisticated pumping device that combines electric and hydraulic power. It is constructed with cast iron and features a duplex piston design for handling sewage, slurry, and mud.
The High Pressure Industrial Sewage Effluent Transfer Dewatering Pump is a powerful and specialized pump designed for the transfer and dewatering of industrial sewage effluent.
The Ceramic Sewage Sludge Mud Reciprocating Piston Pump is a specialized pump engineered for the transportation of sewage sludge and mud. It incorporates ceramic components for enhanced durability and performance.
The Wastewater Slip Plunger Pump For Stone Sewage is a specialized pump designed to handle the wastewater from stone processing. It is engineered to efficiently transfer and manage the sewage.
