The Hydraulic Ceramic Piston Kaolin Clay Slurry Pump is a specialized pump designed for handling kaolin clay slurry with a hydraulic ceramic piston mechanism.Ceramic piston pump is famous for its duplex ceramic pistons, the highest working pressure could be 2.0Mpa.
| Lead time | according to machine model and quantity |
| Product Origin | china |
| Shipping Port | customized |
| Payment | T/T, LC at sight, |
| Color | customized |
| Inventory | 20 |
| MOQ | 1 |

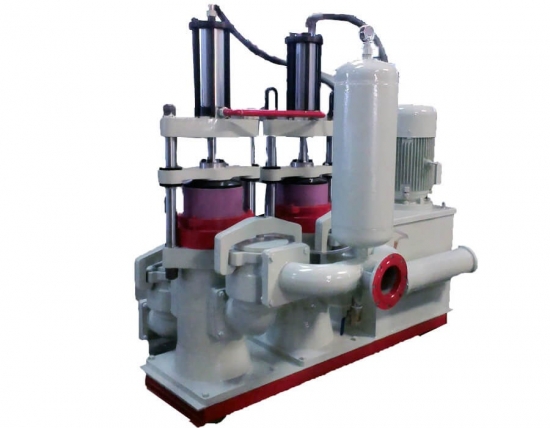

Hydraulic Ceramic Piston Slurry Pump
The Hydraulic Ceramic Piston Kaolin Clay Slurry Pump offers an efficient and reliable solution for transporting kaolin clay slurry. The hydraulic system provides smooth and controlled operation, ensuring consistent performance.
The ceramic piston enhances the pump's durability and resistance to abrasion, making it suitable for the demanding conditions of kaolin clay handling. This pump can handle high-viscosity and abrasive slurries with ease, minimizing downtime and maintenance costs.
It is widely used in kaolin clay processing plants and related industries, contributing to improved productivity and process efficiency. The advanced design and quality construction make it a preferred choice for handling kaolin clay slurry in various applications.
Slurry Pump Characteristic:
1. Hydraulic driven, two ceramic pistons working up and down stably
2. The highest feeing pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, the pressure could be adjusted.
3. Pistons are made of alumina ceramics,of great abrasion resistance and corrosion resistance.
4. Using combined seal, good sealing efficiency
5. Good Design Structure, Convenient Installation and maintenance, Long Usage Life Span
How slurry pump work:
YB series hydraulic piston pump have been studied for transporting thick slurry to the filter press or spray-driers. The pump is formed by: two pistons, run by two hydraulic cylinders; suction and delivery valves which can be easily disassembled for rapid inspection or for cleaning the pump; an air accumulator; a control pressure gauge; a valve to adjust the working pressure at any value (within the fixed limits), and a safty valve. The pistons are made of alumina ceramic(This special coating guarantees long life and resistance to the high abrasive action of the liquids) and equipped with gaskets made of special wear resistant material with a low coefficient of friction.
Slurry Pump Technical Parameters:
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400 |
Pre-sale Service:
1.Your inquiry will be replied within 8 hours.
2.Help you to select suitable model
3. Spare parts are in stock
After-sale Service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas
The Thick Slurry Transport Hydraulic Ceramic Plunger Pump is a specialized pump engineered for transporting thick slurry efficiently.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The YB300 Variable Flow Slurry Piston Pump is a specialized pump designed for handling slurry with variable flow rates.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press is a specialized pump designed for transporting sludge in filter press systems. It utilizes hydraulic power and features ceramic plungers for enhanced durability.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Electric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump is a sophisticated pumping device that combines electric and hydraulic power. It is constructed with cast iron and features a duplex piston design for handling sewage, slurry, and mud.
The High Pressure Industrial Sewage Effluent Transfer Dewatering Pump is a powerful and specialized pump designed for the transfer and dewatering of industrial sewage effluent.
The Ceramic Sewage Sludge Mud Reciprocating Piston Pump is a specialized pump engineered for the transportation of sewage sludge and mud. It incorporates ceramic components for enhanced durability and performance.
The Wastewater Slip Plunger Pump For Stone Sewage is a specialized pump designed to handle the wastewater from stone processing. It is engineered to efficiently transfer and manage the sewage.
The Hydraulic Electric Duplex Ceramic Piston Mud Pump is a sophisticated pumping solution that combines hydraulic and electric power for efficient handling of mud. It features duplex ceramic pistons for enhanced durability and performance.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
