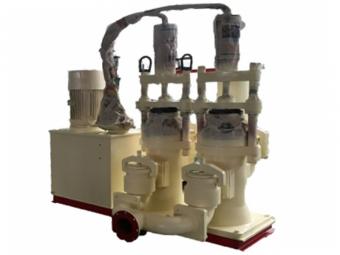

The Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press is a specialized pump designed for transporting sludge in filter press systems. It utilizes hydraulic power and features ceramic plungers for enhanced durability.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
Lead Time:
according to machine model and quantityProduct Origin:
chinaShipping Port:
xiamenPayment:
T/T, LC at sight,Color:
customizedHydraulic Sludge Transport Ceramic Plunger Pump For Filter Press
The Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press provides a reliable and efficient means of moving sludge within the filtration process. The hydraulic system ensures smooth and consistent operation, even when handling thick and viscous sludge.
The ceramic plungers offer superior resistance to abrasion and corrosion, extending the pump's lifespan and reducing maintenance requirements. This makes the pump suitable for continuous and demanding applications in various industries.
Whether in wastewater treatment plants, mining operations, or industrial manufacturing, this pump plays a crucial role in ensuring the efficient transport of sludge to the filter press for effective dewatering and separation.
Ceramic Plunger Pump Characteristic:
1. Hydraulic driven, two ceramic pistons working up and down stably
2. The highest feeding pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, the pressure could be adjusted.
3. Pistons are made of alumina ceramics,of great abrasion resistance and corrosion resistance.
4. Using combined seal, good sealing efficiency
5. Good Design Structure, Convenient Installation and maintenance, Long Usage Life Span
How Ceramic Plunger Pump Work:
YB series hydraulic piston pump have been studied for transporting thick slurry to the filter press or spray-driers. The pump is formed by: two pistons, run by two hydraulic cylinders; suction and delivery valves which can be easily disassembled for rapid inspection or for cleaning the pump; an air accumulator; a control pressure gauge; a valve to adjust the working pressure at any value (within the fixed limits), and a safty valve. The pistons are made of alumina ceramic, equipped with gaskets made of special wear resistant material with a low coefficient of friction.
Ceramic Plunger Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400 |
Ceramic Plunger Pump Function
It is mainly applicable in supplying slurry to various kinds of spray-driers, also in long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
