The YB-85 Kaolin Clay Slurry Pumping Transfer Equipment is a high-performance and reliable solution designed specifically for the efficient transportation of kaolin clay slurry. This equipment is engineered with advanced technology and quality materials to ensure smooth and continuous operation in various industrial processes.
Lead Time:
According to size and quantityProduct Origin:
ChinaShipping Port:
XiamenPayment:
T/T, LC at sightYB-85 Kaolin Clay Slurry Pumping Transfer Equipment
The YB-85 Kaolin Clay Slurry Pumping Transfer Equipment stands out for its exceptional pumping capacity and durability. It can handle large volumes of kaolin clay slurry with ease, minimizing downtime and maximizing productivity. The pump is equipped with a powerful motor and an optimized impeller design to provide efficient fluid transfer.
In addition, this equipment is built to withstand the harsh conditions often associated with kaolin clay processing. Its robust construction and corrosion-resistant materials ensure long service life and low maintenance costs.
Overall, the YB-85 Kaolin Clay Slurry Pumping Transfer Equipment is a trusted choice for industries relying on the efficient and reliable movement of kaolin clay slurry.
This slurry pumping transfer machine also could be called hydraulic piston pump.
There are 6 types, YB-85, 120, 140, 200, 250, 300. It could also be designed to variable frequency and variable flow types, which could help user to save electricity.
Parameters:
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | External Szie (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.0 | 2.0 | 4 | 1230*850*1600 | 550 |
Characteristic:

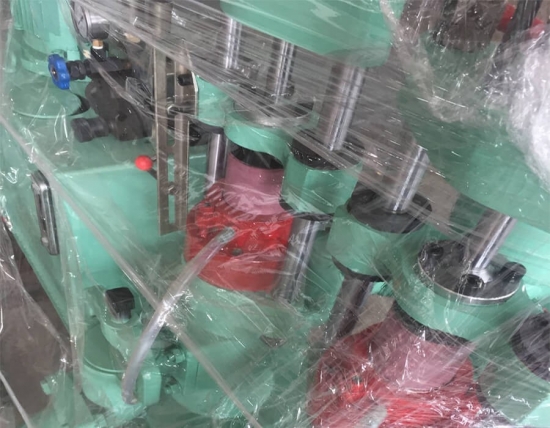

1. Hydraulic driven, two ceramic piston working up and down.
2. The highest working pressure could be 2.0mpa, normal working pressure is 1.5mpa
3. Pistons are made of alumina ceramics, of great abrasion resistance and corrosion resistance.
4.Variable piston pump is adopting variable oil pump, flow could be variable, which will save more electricity compared to normal ceramic piston pump.
5.Variable frequency pump adopts frequency conversion technology, match a variable frequency electric cabinet for saving more electricity, compared to variable flow ceramic piston pump and normal ceramic piston pump.
The Hydraulic Ceramic Piston Kaolin Clay Slurry Pump is a specialized pump designed for handling kaolin clay slurry with a hydraulic ceramic piston mechanism.Ceramic piston pump is famous for its duplex ceramic pistons, the highest working pressure could be 2.0Mpa.Lead time according to machine model and quantity Product Originchina Shipping Portcustomized PaymentT/T, LC at sight, Colorcustomized Inventory20MOQ1
The Thick Slurry Transport Hydraulic Ceramic Plunger Pump is a specialized pump engineered for transporting thick slurry efficiently.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The YB300 Variable Flow Slurry Piston Pump is a specialized pump designed for handling slurry with variable flow rates.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press is a specialized pump designed for transporting sludge in filter press systems. It utilizes hydraulic power and features ceramic plungers for enhanced durability.Hydraulic ceramic piston slurry pump is widely used to pump thick slurry, to match with high pressure filter press or transport slurry to dry silos.
The Electric Hydraulic Cast Iron Duplex Piston Sewage Slurry Mud Pump is a sophisticated pumping device that combines electric and hydraulic power. It is constructed with cast iron and features a duplex piston design for handling sewage, slurry, and mud.
The High Pressure Industrial Sewage Effluent Transfer Dewatering Pump is a powerful and specialized pump designed for the transfer and dewatering of industrial sewage effluent.
The Ceramic Sewage Sludge Mud Reciprocating Piston Pump is a specialized pump engineered for the transportation of sewage sludge and mud. It incorporates ceramic components for enhanced durability and performance.
The Wastewater Slip Plunger Pump For Stone Sewage is a specialized pump designed to handle the wastewater from stone processing. It is engineered to efficiently transfer and manage the sewage.
