What is slurry piston pump?YB series ceramic piston pump have been studied for transporting thick slurry to the filter press or spray-driers. The ceramic plunger pump is formed by: two pistons, run by two hydraulic cylinders; suction and delivery valves which can be easily disassembled for rapid inspection or for cleaning the pump; an air accumulator; a control pressure gauge; a valve to adjust the working pressure at any value (within the fixed limits), and a safty valve(Referring to Map2). The pistons are coated with sintered alumina (This special coating guarantees long life and resistance to the high abrasive action of the liquids) and equipped with gaskets made of special wear resistant material with a low coefficient of friction. Slurry piston pump runs stable, and has low noise, high pressure, low pressure fluctuation, small size, light weight, convenient operation and maintain, installation, long life span and so on . Mud plunger pump is mainly applicable in transfer slurry to various kinds of spray-driers, also in long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press. Presently, YB series oil pressure piston slurry pump has five model:YB85, YB120, YB140, YB200, YB250, YB-300, the flux is 3m³/h ～40m³/h, the pressure is 0-2.0Mpa.

Membrane Filter Press Diagram1. Passive sprocket       2. Head stock        3. Filter plate pack assembly  4. Main frame assembly5. The supporting feet     6. Shifter            7. Follower assembly       8. Air hose assembly9. Oil cylinder assembly   10. Driving sprocket   11. Electrical control cabinet  12. Hydraulic power unit

Hydraulic Oil For Filter PressHydraulic oilName Grade Working TemperatureAnti-wear hydraulic oilL-HM32(46)-5℃～80℃Low-temperature hydraulic oilL-HV(S)32 (46)-20℃～80℃ 1. The manufacturer of filter press dose not supplies the hydraulic oil. User provides it himself and make sure it’s cleaned.2. The hydraulic oil of chamber filter press should be used under the corresponding temperature, if the temperature is too low the viscosity will ascend, if the temperature is too high, the viscosity of the hydraulic oil will descent.3. Ways of adding the hydraulic oil of hydraulic filter press and the volume       When adding the oil, please use the oil filter vehicle to add the clean hydraulic oilfrom the air cleaner. For the oil tank is limited, the oil will overflow by one-time adding. Please do it by following steps: when the filter press is not under operation, first: add the elementary oil, then open the press, when closing, add the oil for the second time. For different models, the cylinder diameter, the stroke are different and the oil tank volume are also different, please noted.

Attentions During Filter Press Operation (Part 1) ●During machine trial operation, make sure the hydraulic oil is filled according to this manual. Otherwise the unfilled oil cylinder will cause abnormal operation of the hydraulic power unit, or even the damage to the hydraulic pump. ●Replace hydraulic oil regularly according to this manual and clean hydraulic valve and pump timely, or the normal working condition of the hydraulic power unit will be hindered.●Filtration pressure should not exceed the normal filtration pressure of the PP filter press, or it will cause breakage of the PP filter plates.●The “filtration pressure” on the label refers to the testing experiment pressure. During usage, due to the property of the material, the actual bearing filtration pressure may be lower than the “filtration pressure”. Users must do sufficient experiments, then confirm the parameters, NANXING is not responsible for the damage of the equipment and liability for loss caused by it.●Personnel without training for hydraulic filter press operation and system maintenance should not open the electrical control cabinet to connect the wires alone, or wrong connection of the wires may lead to error action of the filter press.●Shut off main electric power supply switch of the PP filter press during maintenance.●The remained filter cake on the sealing surface should be cleaned away before a new filtering cycle, otherwise, the side bars may distort, the filter plates break, and filtrate leak, all of which are not within the “Three Guarantees”.

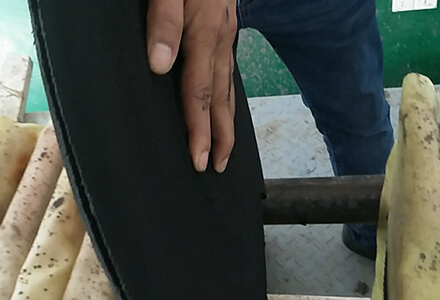

 Filter Cloth Installation     The filter cloth may shrink or distorts when using due to change of temperatures, pressures and textile methods, influencing the filter press filter result. Due to the uneven quality of filter cloth on the market, it’s suggested to purchase filter cloth from the original supplier. If the user selects the filter cloth model independently or produces the filter cloth himself, which lead to un-installation of filter cloth or bad filter result or even no filter result, he himself takes the responsibility.How to Install Filter Cloth On Filter Plates 1. When installing the filter cloth bag, roll up one cloth sheet in direction cloth collar from two sides, fold up the two rolled up parts to the centre, pass them through the feeding hole of the filter plate, unroll them on the other side and bind the two cloth sheets together by means of bands. (Refer to Figure e: installation diagram of filter cloth bag)  2. Attentions during installationThe filter cloth should be wrapped on the filter plate smoothly when binding.Take care to distinguish the filter cloth for recessed plate and membrane plate if membrane filter press model.3.  Attentions during use The withholding performance of filter cloth might get inclined due to blocking by the materials after a time of use. The user needs washing and regenerating them regularly. If the wash result is not satisfactory and the filter cloth becomes stiffen, it should be soaked (normally 24 hours) by low density light acid or light alkaline liquid to neutralize it and recover its performance. If still can not work well, the filter cloth should be changed to new ones.

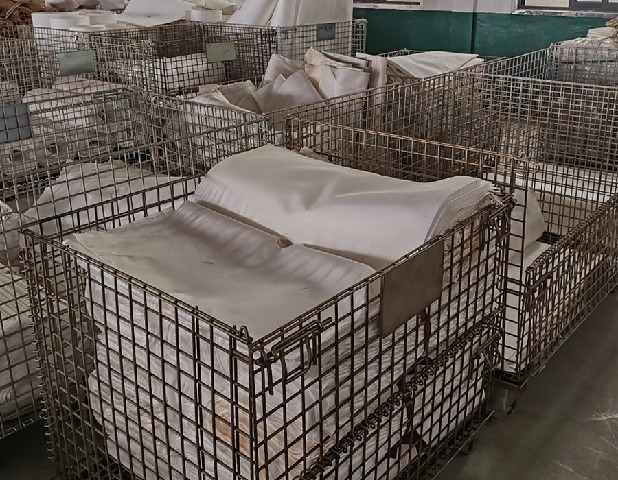

The property and pattern of filter cloth will directly effect filtering result. So choosing filter cloth is a very important thing in the filter press work. Nowadays the filter cloth is made of synthetic fibers. According to materials there are polyester fiber, polyvinyl alcohol fiber, polypropylene fiber and polyamide fiber. Their properties are as followings: Properties  Polyester  Polyamide Polypropylene PolyvinylAcid-resistantVery goodnot goodgoodBadAlkali-resistantnot goodgoodvery goodvery goodConductibilitybadbettergoodCommonBreaking Stretch30-40%18-45%>30%12-25%Recoverabilityvery good>90% when10% stretchgoodnot goodWearabilityvery goodvery goodgoodBetterHeat-resisting1700C1300C less   contraction900C less   contraction1000C contractionSoftening-point230-2400C1800C140-1500C2000CMelting Point255-2650C210-2150C165-1700C2200CNote: The polyester can not resist strong sulphuric acid and heated formic acid.  The polypropylene can not resist strong nitric acid, chlorosulfuric acid, strong caustic soda, strong acetic acid, acrylic acid and chloro-aromatic hydrocarbon.     Besides, for the better interception result and filter press filter speed, choose filter cloth according to the granularity, density, viscosity, chemical composition and filtering technology conditions. Due to variety of filter cloth material and pattern, there are different strength, extension percentage, penetration and thickness of filter cloth, and thus the different filtering efficiency. In addition, the cotton cloth, adhesive-bonded fabric, mesh screen, filter paper and porous membrane also may be used for filtering medium. If you need any consultation service please contact NX filter press supplier.

     Nanxing Circular plate chamber filter press is a kind of mechanical equipment using filter plate and filter cloth, with the high working pressure to the object to separate liquid out from the slurry. Nowadays, the chamber filter press is popular and stable liquid separation equipment, applied in many separation industries.Filter Press Parts & Working Principle Introduction1. Filter PartThe two crossbeams with square Section, their two endings are fastened on the two sides of thrust plate and hydraulic cylinder seat to form the structure. There are pressing plate and filter plates with filter cloth, which are placed between the two crossbeams, in the order to form chambers.2. Pressing PartWorking by oil tank，the piston rod will push the pressing plate, pressing filter plates to form airtight chambers. It could prevent the slurry from spurting and leakage when sending the slurry with pressure.Working procedure of the pressing part:     Starting the filter press, then the oil pump will work. The piston rod will push the pressing plate to press the filter plates to form airtight chambers. The oil pump will stop automatically when forming the chambers, then start the hydraulic piston pump to absorb the slurry and sending the slurry to filter press.After finishing sending the slurry and dewatering, press the “returning” button to loosen the fillter plates, then unload the filtered cake.3. Hydraulic PartConsists of oil box, motor, oil pump, electromagnetic valve, Non-return valve, over-flow valve, pressure gauge, oil tank and pipeline.4. Other Optional DeviceThe filter press could be with automatic plates opening device and automatic water collector. What is more, the fast opening device could also match with shaking device for filtered cakes automatically discharging.
